MPPT Solar Charger Controller192V-600VDC Rack Mount MPPT Solar Charger Controller

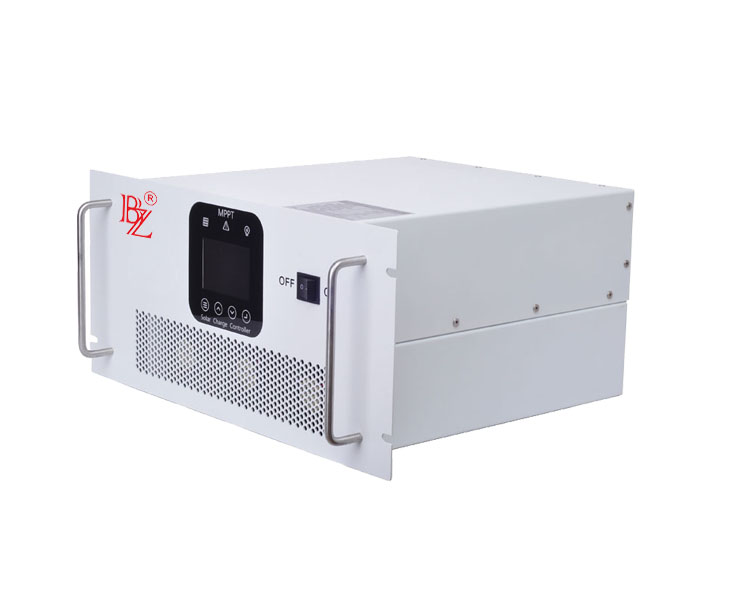

192V-600VDC Rack Mount MPPT Solar Charger Controller

Features

1. High speed & performance 32bit processor, advanced EMC design

2. Advanced MPPT tracking algorithm, the tracking efficiency more than 99%

3. High performance IGBT power module as electronic switch, plus multiphase synchronous rectification technology, improves the stable greatly

4. Ultrafast maximum power point tracking speed to ensure tracking efficiency

5. Perfect battery protection function and advanced battery activation technology which increases battery lifespan 30% at least and improves the system performance

6. Widely PV arrays’ voltage input, this can save the cost of PV combiner box, wires and construction

7. Full enclosed duct design and high-speed fan for cooling makes the controller suitable for various harsh environments

8. 3’’ LCD screen and LED indicators show working parameters and system status

9.  Parameters can be adjusted through touching keys in LCD panel

10. Users can check the power generation of daily, monthly and total through the statistical function of generating capacity (SOC)

11. Complete menu display and operation, plus the humanized design of browsing interface, makes the operation more easy

12.It shows the environment temperature, data and real time, auto temperature compensation function

13.Twice protection function to protect battery from damage when the power switch is down

14. Standard Modbus communication protocol for RS-485 or GPRS communication to extend the communication distance (optional function)


Model

BZMC192、220(216)、240

BZMC360、384(380)

BZMC 480

Battery bank voltage

192V、 220V(216V)、 240V

360V、384V(380V)

480V

Rated charge current

50A

80A

100A

50A

80A

100A

50A

60A

80A

Controller charging method

MPPT ( Maximum power point tracking )

Controller tracking efficiency

≥99%

≥99%

≥99%

PV module maximum open circuit voltage

DC800V

DC800V

850VDC

MPPT tracking start voltage

Vbat( Actual battery voltage )+20V

PV startup charging voltage

Vbat( Actual battery voltage )+10V

Maximum PV module power

9.6KW

11.0KW

12.0KW

15.2KW

17.6KW

19.2KW

19.2KW

22.0KW

24.0KW

18.0KW

19.2KW

28.8KW

30.7KW

36.0KW

38.4KW

24.0KW

28.8KW

38.4KW

Charging method

Four-stage charging: MPPT fast charge, equal charge (constant voltage), float charge, end charge

Human interaction

LCD display, touch button

Heat dissipation

Intelligent temperature control air cooling

communication

RS485 communication, standard Modbus protocol, optional DTU module for wireless remote monitoring

Use area elevation

≤2000 meters, more than 2000 meters need to be derated

Working temperature

-25℃~+55℃

Equipment protection level

IP21

Weight

25kg

28Kg

25Kg

28Kg

25Kg

28Kg

Size

494*384*187mm
