Low Frequency Pure sine wave InverterBZP-500KW off grid solar plant power inverter

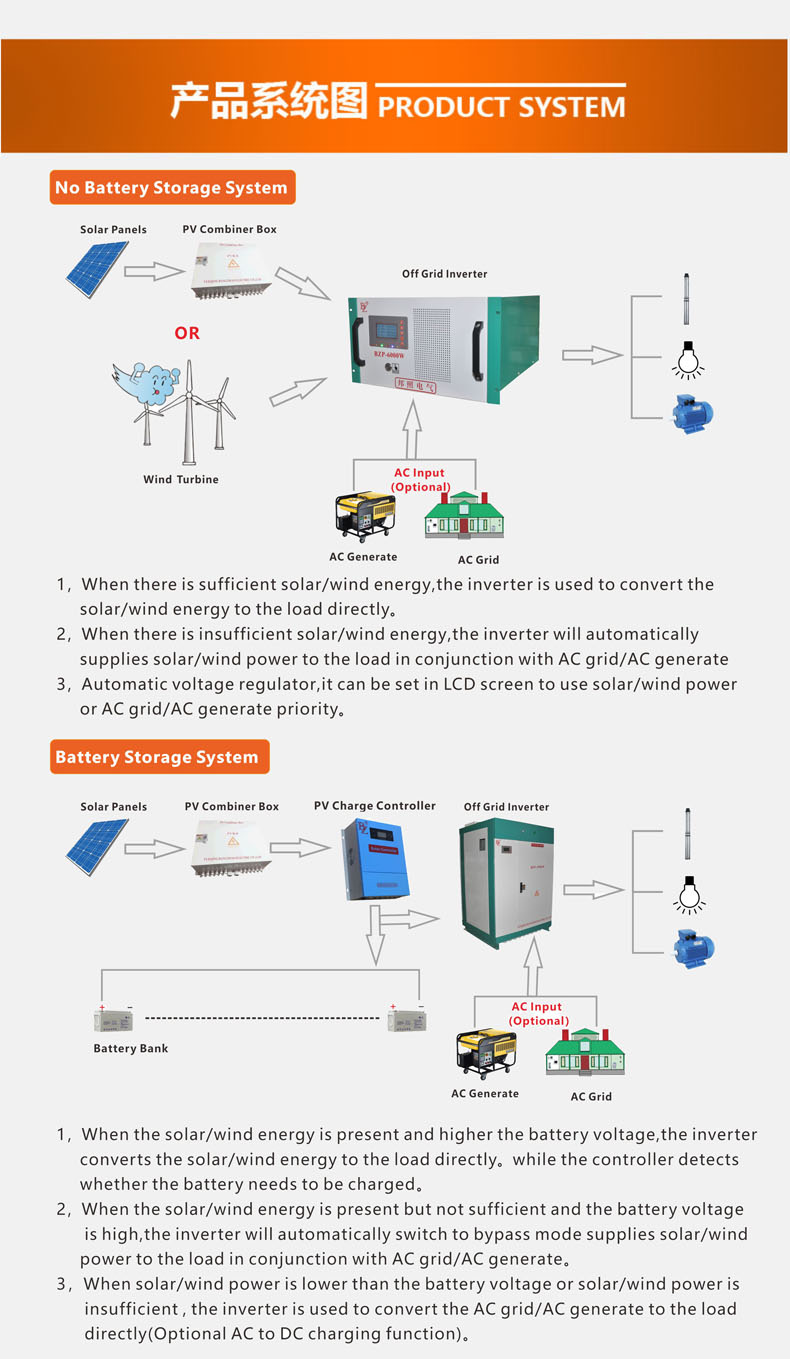

PV Off-grid Solar Power System

PV Off-grid solar power generation system including solar panel array, solar charge controller, storage battery, Off-grid inverter, etc. In the sunshine, the solar panel convert the solar energy to DC power and charge the battery group by the charge controller. Then the off grid inverter convert the DC power into AC power for power supply the AC load.


Technical Features for BZP-500KW off grid solar plant power inverter

1. Using the sixth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It’s service life can up to 15 years or more.

2. Intelligentized, modularized, simple structure design with powerful function.

3. Two kinds of start mode: Step-down Voltage Start and Variable Frequency Start. Customers can set start mode according to the type of their load. This function is very convenient for users and also reduce frequency converter’s usage, which reduced the cost of equipment investment, easy to connect wires and control.

4. The output frequency can be setting via LCD panel, it’s very convenient for customer.

5. The output voltage can be set between -40 % to +20 % of rated voltage. And the output voltage is very accuracy ±1%.

6. The DC input voltage range can be set. Over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point all can be setting via the LCD panel.

7. Pure sine wave output. With good dynamic response less than 50MS, waveform distortion rate smaller, higher conversion efficiency and stable output voltage.

8. Low Frequency Transformer, which ensures that inverter has high efficiency.

9. High conversion efficiency, Max. Efficiency≥97%

10. Adopts black pure aluminum radiator, which confirms the best radiating performance.

11. Powerful data display function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.

12. Wide input voltage can be set according to customer’s requirement. Input voltage range can be selected from 500-850V.

13. Wide input voltage can work without battery and solar charge controller,save more cost and With MPPT wide voltage input function, maximum use of solar power

14. Optional function:RS485 remote monitoring,AC bypass input,built in solar charge controller or AC to DC battery charger.

Below parameter only for reference,Could be custom made to user specifications.

Model

BZP-500KW

Isolation mode

Low Frequency Transformer

DC Input

Rated voltage (Vdc)

600V

Rated current(A)

833A

AC Output

Rated output power

500KW

Output waveform

Pure Sine Wave

Rated Voltage

380VAC±3%

Phases

3 phase 4 wire

Rated current(A)

757A (phase current)

Frequency

50Hz or 60Hz

Rated output voltage range (V)

380/400/415/440VAC optional

Power Factor(PF)

1

Overload Ability

150%, 5 seconds

Efficiency

>93%

Waveform distortion rate (THD)

<3%(Linear load)

Dynamic Response (0 to 100% load)

5%,≤50ms

Display

LCD

Running mode

Working continuously

Electrical insulation properties

2000Vac, 1 Minute

Communication interface (optional)

RS485

Protection Function

Protection

Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc.

Cooling method

Fan-cooled

Short-circuit protection

No automatic recovery, need to restart the machine

Working environment

Noise ( 1 meter)

≤50dB

Degree of protection

IP20(indoor)

Working Altitude(m)

≤2000

Working temperature

-25~+55℃

relative humidity

0~90%,non-condensing

Mechanical dimension

Depth* Width * Height

2500x1600x1800mm

Weight (Kg)

2500Kg

※Above parameter only for reference, could be custom made to user specifications.
