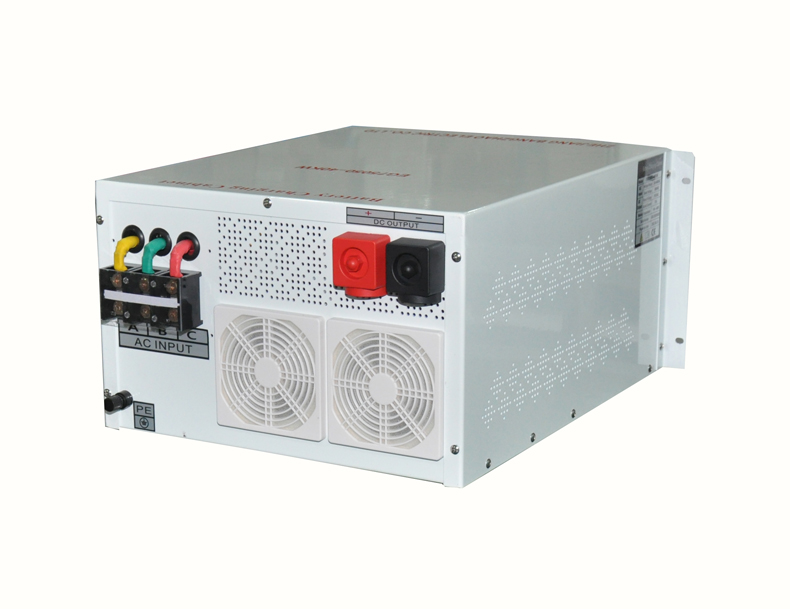

150-1000VDC High voltage 3 phase AC-DC battery charger

BEG series 150-1000VDC High voltage 3 phase AC-DC battery charger is developed specially for 3-phase AC input charging module with high efficiency and a wide range of constant power output, developed specifically for electric vehicle mobile charging stations

Features：

1, Power supply module is pluggable, easy to maintain

2, 5 inch colour LCD screen, easy and simple to operate

3, can set the battery evenly voltage, floating voltage, current, and can set manual or automatic mode

4, can be timed charging, powerful protection, overheating, short circuit, overload, overvoltage, undervoltage, etc.

5, soft start charging, soft shutdown to minimize the impact on the battery

6, input has over-voltage protection circuit breaker to prevent over-voltage burn power module

7, RS485 interface can be selected, the output voltage and current can be controlled through RS485 interface

8, charging pile module ripple current is less than 5%, the charging current impact is small for a variety of current.

Category	Name	Parameter
Environmental conditions	Operation temperature	-40°C ~ +75°C, derating is require when the temperature is above 55°C.
	Storage temperature	-40°C ~ +70°C
	Relative humidity	≤95%RH, without condensation
	Cooling mode	Forced air cooling
	Altitude	2,000 m a.s.l., derating is require when the altitude is above 2,000 m a.s.l.
	Atmospheric pressure	79 kPa ~ 106 kPa
AC input	Input system	Three phases + PE
	Rated voltage	380 Vac
	Voltage range	320 Vac ~ 450Vac
	Maximum current	32A-64A
	Rated frequency	50Hz/60Hz
DC output	Voltage range	150~750V
	Current range	0.1~100A
	Rated current	50A*2@400V (required for setting of current limiting point,750V is 26.67A)
	Steady voltage precision	<±0.5%
	Steady current precision	≤±1% (rated range of 20% ~ 100% for output load)
	Load regulation rate	≤±0.5%
	Startup overshoot	≤±3%
	Peak-to-peak value noise	≤1% (50~750V, 0~20MHz)
Power factor and THD	Power factor	≥0.95 Full-load output power of @20%~50%
		≥0.98 Full-load output power of @50%~100%
		≥0.99 Full-load output power, input nominal voltage and frequency of @100%
	THD	≤5% Full-load output power of @50%~100%
Efficiency	Under Rated input voltage	≥95.2％，@750V，50％～100％
