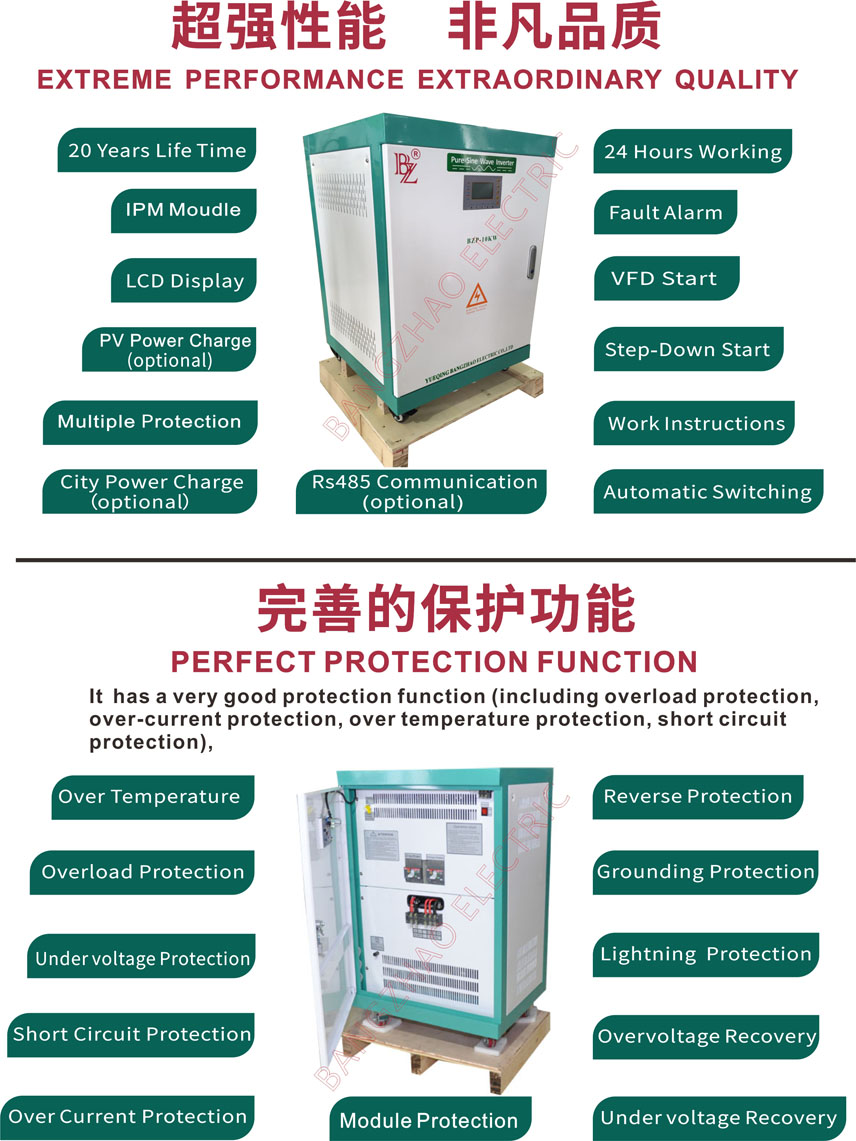

BZP-40KW anti humid and corrosive power inverter with special coating process,it to be able to survive the a very humid and salty atmosphere existing on a boat. This at least requires conforming coating on all circuit boards and connectors.

The inverter output waveform is pure sine wave; this kind of AC power is suitable for most industrial electronics and home appliances, the power supply features much better than other modified sine wave and square wave.

Technical Features:

1, Two kinds of start mode: Reduction Voltage Start and Variable Frequency Start. Customers can set start mode according to the nature of their load.

2, The output frequency can be set, this function is very convenient for customer.

3, The output voltage can be set between +20 % to -40 % of rated voltage. It’s a great convenience to users.

4, The DC input voltage range can also be set. Over-voltage point, under-voltage point, over-voltage recovery point, under-voltage recovery point all can be set via the LCD panel. Convenient for increasing or reducing the quantity of batteries, photovoltaic modules also can be used flexibly.

5, Pure sine wave output. with good transient response less than 40MS, little harmonic distortion, higher conversion efficiency and stable output voltage.

6, Powerful data display and fault instruction function. LCD can display the DC input voltage, output frequency, phase voltage, phase current, AC bypass input voltage, output power KWH, time and date, temperature, fault code display.

7, Using the sixth generation efficient IPM intelligent module from Japanese Mitsubishi, high efficiency and stable performance. It with powerful protection function, the protection for short circuit, over load, over temperature is more safe and reliable. It’s service life can up to 15 years or more.

8, Wide input voltage can be set according to customer’s requirement. Input voltage range can be selected from 100-400V or 400-850V.

9, Product have passed the European CE (EMC and LVD) certificated and accredited by Australia CEC energy network.

Technical Data（Below parameter only for reference，Could be custom made to user specifications.）

Model		BZP-40KW
Isolation mode		Low Frequency Transformer
DC Input	Rated voltage (Vdc)	360V
	Rated current（A）	111A
AC Output	Rated output power	40KW
	Output waveform	Pure Sine Wave
	Rated Voltage	220V±3%	380VAC±3%
	Phases	Single phase	3 phase 4 wire
	Rated current（A）	182A	61A (phase current)
	Frequency	50Hz or 60Hz
	Rated output voltage range (V)	220/230/240/380/400/415VAC optional
	Power Factor（PF）	0.9
	Overload Ability	150%, 5 seconds
	Efficiency	>93%
	Waveform distortion rate (THD)
	Dynamic Response (0 to 100% load)	5%，≤50ms
	Display	LCD
	Running mode	Working continuously
	Electrical insulation properties	2000Vac, 1 Minute
Protection Function	Protection	Input reverse polarity, under voltage, overvoltage, output over-current, short circuit, overheating etc.
	Cooling method	Fan-cooled
	Short-circuit protection	No automatic recovery, need to restart the machine
Working environment	Noise ( 1 meter)	≤50dB
	Degree of protection	IP20（indoor）
	Working Altitude（m）	≤2000
	Working temperature	-25~+55℃
	relative humidity	0~90%，non-condensing
Mechanical dimension	Depth* Width * Height	650x750x1100mm
	Weight （Kg）	350Kg

※Above parameter only for reference ,could be custom made to user specifications.
